A wide variety of processes take place in coal grinding plants, which are controlled safely and economically with the help of ENOTEC products. Whether in the furnace, where hot gases are generated to dry the coal, or in the dust silo, where the fine coal dust is stored: with ENOTEC products, you can safely control and perfectly regulate your system. This saves costs and ensures maximum plant safety.
ENOTEC products also offer a wide range of applications in various incineration plants, as they can be used in flue gas temperatures of up to 1400 °C, with high dust loads and in corrosive or reducing exhaust gases. The spectrum ranges from coal and gas-fired power stations, waste incineration plants, shipbuilding, refineries and crematoria to cement and steel works and the chemical industry. In other words, wherever combustion needs to be controlled efficiently, quickly and precisely.
Our promise:
We at ENOTEC will find a solution for every application, whether customised or from series production. Our customers benefit from our experienced staff and our globally active and well-versed sales and service team.
Around the clock and around the world.
Our measuring points in the coal grinding plant
Coal that has been mined is not suitable to be fed directly into a furnace due to its form and properties (especially the moisture content). It must therefore be homogenized, dried and ground beforehand. In coal grinding plants, lignite or hard coal is ground into coal dust. This pulverized coal is used in a wide variety of process engineering systems.
When grinding coal, oxygen (O<sub>2</sub>) and carbon monoxide (CO) must be measured, as the fine coal dust can quickly lead to dust explosions. The safe operation of a coal grinding plant can only be guaranteed if the oxygen content is reduced. The two other parameters of an explosion, i.e. fuel and heat, cannot be reduced in this case.
Depending on the material, an O<sub>2</sub> content < 10 % by volume is required, which is achieved by diluting the air with water vapour or flue gas. If the air is diluted with water vapour, the O<sub>2</sub> value cannot be determined extractively, as the water in the wet sample gas condenses out in this measurement method and the O<sub>2</sub> value measured is therefore too high.
Therefore, only an in-situ measurement is suitable here.

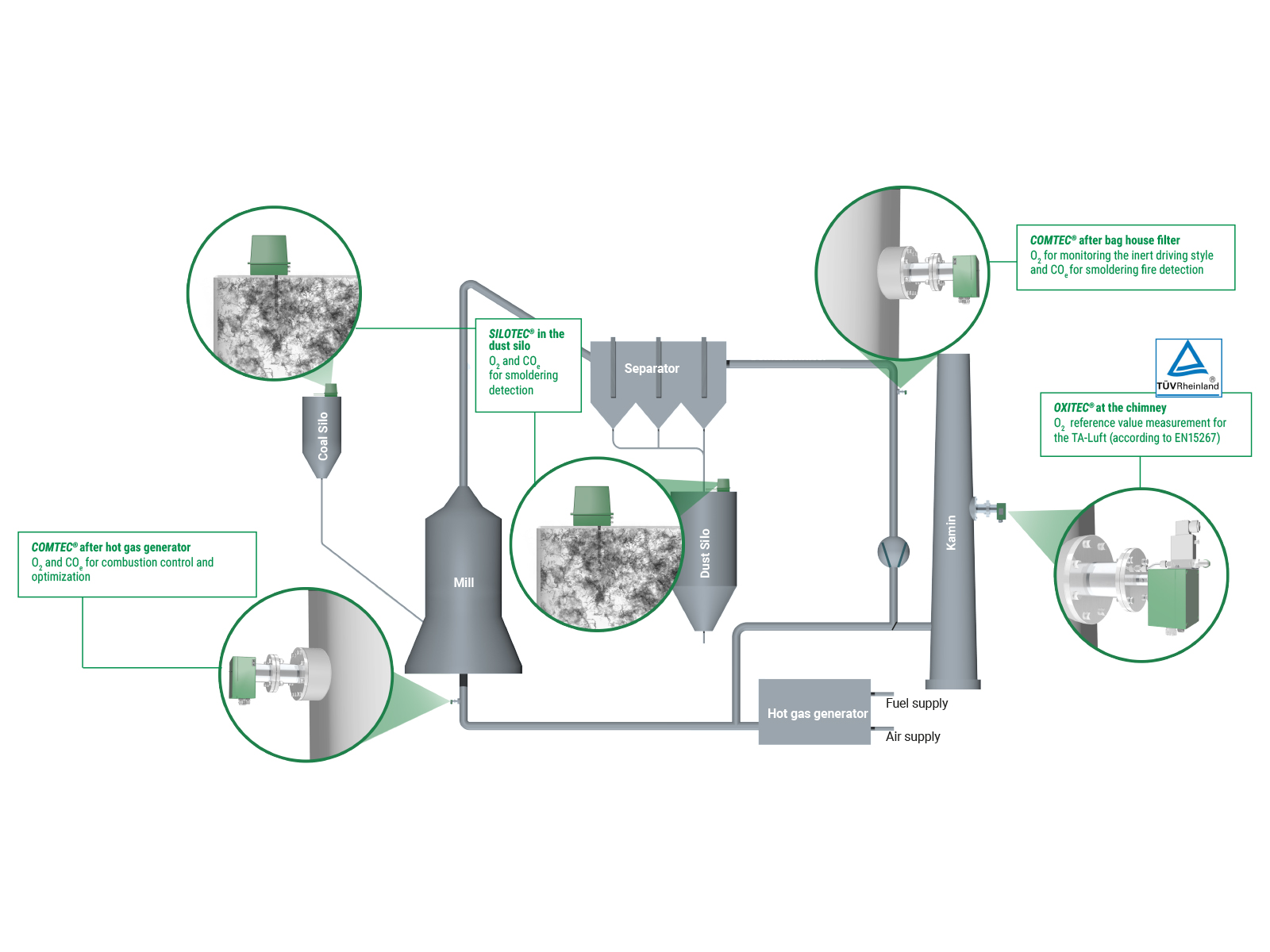

Measuring points of the coal grinding plant:
COMTEC 6000 after hot gas generator: O2 and COe are measured here in order to be able to control the hot gas generator economically with regard to the fuel-air mixture. The combustion is controlled with the O2 content. The COe value serves as a backup value.
SILOTEC 8000 in the dust silo: InSitu O2 and COe measurement for glowing ember detection. The new self-monitoring SILOTEC probe enables fast, reliable and safe measurement in potentially explosive areas (Zone 20). And all without the need for a maintenance-intensive and slow extractive analysis system.
COMTEC 6000 after bag filter before induced draught: On the one hand, the filter is monitored with the measuring point after the bag filter. If the COe content is too high, there is a risk of a smouldering fire in the filter. Secondly, just before the induced draught and with negative pressure conditions, it can be ensured that the entire system is operated inert. If the O2 value here is below 10 % by volume, it exists in the entire system.
OXITEC 5000 at the flue: The O2 value at the chimney is required as the oxygen reference value for TA-Luft (also QAL1 certified according to DIN EN 15267).
Filter products
OXITEC
OXITEC
OXITEC® 5000 GasEx
The robust OXITEC GasEx analyzer ensures safe and reliable in-situ O₂ measurement. Regarding the OXITEC 5000 GasEx
OXITEC
OXITEC® 500E
The extractive OXITEC 500E analyzer in a 19" rack-mount design for continuous oxygen measurement was specifically designed for installation in analysis cabinets and incorporates the same sensor technology as already used in the proven OXITEC 5000 oxygen analyzers. Regarding the OXITEC 500E
COMTEC
COMTEC® 6000
The COMTEC 6000 InSitu Gas Analyzer is designed for the determination of oxygen and COe in redundant, real-time measurements in flue and process gases. This is achieved by combining an MXP sensor for COe analysis with the technology of an MLT sensor for oxygen measurement. The COMTEC 6000 allows plant personnel to optimize combustion by fine-tuning the process. Regarding the COMTEC 6000
COMTEC
COMTEC® 6000 GasEx
The COMTEC 6000 GasEx combines the O₂ and COe sensors in a robust, ATEX-certified in-situ analyzer. Rapid responses to changes enable safe measurement of oxygen and COe, for example, in refineries or similar applications where there is a risk of explosion (Gas Ex zones 1/2). Regarding the COMTEC 6000 GasEx
COMTEC
COMTEC® 6000 StaubEx
The COMTEC 6000 StaubEx is a highly robust in-situ analyzer for measuring O₂ and CO₂ in process gases with abrasive dust loads. The system is ATEX certified for Class II 2D Ex tb IIIC T133°C/141°C Db. Regarding the COMTEC 6000 StaubEx
SILOTEC
SILOTEC® 8000
The SILOTEC 8000 - fast, reliable and safe COe and O2 gas analysis for ATEX Zone 20 in silos and other potentially explosive dust atmospheres.
Regarding the SILOTEC 8000
CEMTEC
CEMTEC®
The CEMTEC features self-cleaning properties and unparalleled mechanical strength for continuous measurements to optimize the pyroprocess in cement plants.
At CEMTEC
ENSITU
ENSITU® 7000
Install, switch on and measure. ENSITU 7000, the affordable entry-level product from ENOTEC.
Regarding ENSITU 7000
AQUATEC
AQUATEC® 1000
Controls and reduces drying time by means of rapid O2 and H2O measurement.
Regarding the AQUATEC 1000In situ measuring principle
The sensors for oxygen and unburned molecules produced by ENOTEC measure directly in the flue gas.
The structure of the sensor technology and the patented filter design have been continuously developed and optimized over the last few decades. The smallest changes in the gas composition are detected within seconds and form the basis for safe and efficient plant operation - permanently and sustainably.
